SimplyVBA and SimplyVB6
Global Error Handler
(v1.6.0)

QuickStart: Enabling and disabling (VB6)



 PLEASE NOTE: SimplyVBA and SimplyVB6 have been superseded by vbWatchdog.
This page exists for archival purposes only.
Upgrade licences of vbWatchdog are available at a discounted rate.

On this page you'll find:

The basics

The information below applies only to the VB6 edition of the global error handler (SimplyVB6 Global Error Handler)

To demonstrate how to enable and disable the SimplyVB6 Global Error Handler, let's create a simple example application.  We will add a global error handler to your application that simply logs all errors that occur to a text file.

Step 1. Add the VB6 COM Reference

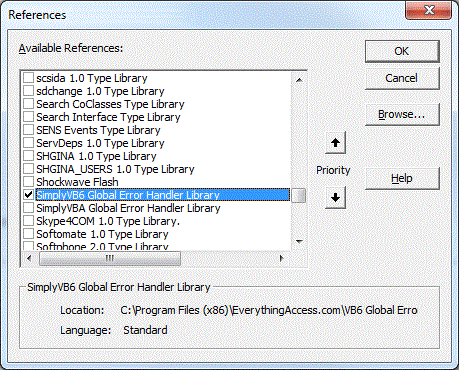

Create a new VB6 EXE application and go to the Project >> References...  menu option.

(Alternatively, you can go do this with the Add-Ins >> SimplyVB6 Global Error Handler >> Setup normal COM library DLL support option)

VB6 REFERENCES PICTURE

Put a tick next to the 'SimplyVB6 Global Error Handler Library' (as above).
Press OK.

Step 2. Add the initialization VB6 code

You need to activate the library by telling it where the procedure you want to run on error is located. We do this using the AddressOf VB6 feature.

Copy and paste the following code into your VBA module:
Public Sub EnableErrorHandler()

    If ErrEx.EnableGlobalErrorHandler(AddressOf MyGlobalErrorHandler, True) = False Then

    	MsgBox "EnableErrorHandler() failed.  Failed to activate the global error handler."

    End If

End Sub

Public Sub DisableErrorHandler()

    ErrEx.DisableGlobalErrorHandler

End Sub


The DisableErrorHandler routine is completely optional and not required here. Once your application is unloaded, the VB6 Global Error Handler is also unloaded automatically.  In this example we won't be using it.

Step 3. Call our initialization procedure in your startup routine

In order for our error handler to be initialized when your application is loaded, you should call our new procedure from your startup routine (either in Sub Main() or from your initial startup form).

Step 4. Implement our global error handling routine

Now for the important part.

In the initialization code, we have set the global error handler name as "MyGlobalErrorHandler".

So we now need to implement the procedure. Create a new standard module - name it ModGlobalErrorHandler and then copy & paste this code:
Public Sub MyGlobalErrorHandler()

    LogErrorToFile

End Sub

Public Sub LogErrorToFile()

    Dim FileNum As Long
    Dim LogLine As String

    On Error Resume Next ' If this procedure fails, something fairly major has gone wrong.

    FileNum = FreeFile
    Open "C:\ErrorLog.txt" For Append Access Write Lock Write As FileNum

        Print #FileNum, Now() & " - " & CStr(ErrEx.Number) & " - " & CStr(ErrEx.Description)

        'We will separate the call stack onto separate lines in the log
	With ErrEx.CallStack
            Do
                Print #FileNum, "       --> " & .ProjectName & "." & _
                                .ModuleName & "." & _
                                .ProcedureName & ", " & _
                                "#" & .LineNumber & ", " & _
                                .LineCode & vbCrLf
            Loop While .NextLevel
	End With

    Close FileNum

End Sub
This routine (above) is simply logging every error that occurs to a log file on your C drive. Nothing fancy for this example.

Now try it out!

Create a form with a command button and raise an artificial error (division by zero in this example):
Private Sub Command1_Click()

    MsgBox 1 / 0

End Sub
Now open your application ensuring that the initialization routine (EnableErrorHandler) is run. On clicking the test button you should now see the new default Vista dialog in all it's glory:

Basic Vista Error Dialog Example picture


The Vista dialog is fully customizable (and you certainly don't have to use it if you'd prefer to set up your own form dialog instead).

Now just check the C:\ErrorLog.txt file was generated by opening the file in Notepad:

Basic Example Error Log picture


Tip:  If you're new to using the SimplyVB6 Global Error Handler, I strongly recommend you set a breakpoint on the 'MsgBox 1 / 0' line of code and then step through the error (F8 key) to understand the program flow better.

Tips on implementing your global error handler routine

  1. Always use the ErrEx function inside of your global error handler routine instead of Err
  2. Errors that occur inside of your global error handler routine will not be passed on to the global error handler recursively.   Instead, use local error handling inside of your global error handling, if you so wish.
  3. The properties of ErrEx are unique to the error that is being handled, and not effected by any local errors that may occur inside of your global error handling routines (unlike Err)
  4. Set breakpoints and step through the errors and global error handling routines. It might sound obvious, but it's worth remembering.
  5. If writing an AddIn, pass True to the second (optional) parameter of the EnableGlobalErrorHandler so that you only listen to errors that occur inside of your AddIn.
